Hero CBZ Xtreme India Specifications, Price, Features, Color Availability

Wednesday, December 14, 2011 0 comments


Hero CBZ Xtreme India - Features:

  • New digital - Analog combo meter console.
  • All secure ignition switch with key shutter.
  • Diamond lustre headlight.
  • Anti drag fuel tank.
  • 5 spoke wheels & front and rear disc brakes.
  • Prism shell LED tail lamp.


Hero CBZ Xtreme India - Technical Specifications:


Engine
Type               Air cooled, 4 - stroke single cylinder OHC
Displacement                149.2 cc
Max. Power                10.6 kW (14.4 PO@ 8500 rpm)
Max. Torque                12.80 N m @ 6500 rpm
Bore x Stroke                57.3 x 57.8 mm
Carburettor                CV type with carburetor controlled variable ignition
Compression Ratio                9.1 : 1
Starting                Self Start
Ingnition                AMI - Advanced Microprocessor Ignition System

Transmission & Chassis
Cluch                        Multiplate wet
Gear box                        5 Speed constant mesh
Chassis Type                        Tabular, diamond type

Suspension
Front                                    Telescopic hydraulic type
Rear                                    Rectuglar swing arm with 5 step adjustab gas reservior suspension

Brakes
Front Brake                 Disc Dia 240 mm
Rear Brake Disc                 Disc Dia 220 mm
Rear Brake Drum                 Drum internal expanding shoe type (130 mm)

Wheels & Tyres
Rim Size Front                    18 x 1.85, 5 Spoke cast wheel
Rim Size Rear                    18 x 2.15, 5 Spoke cast wheel
Tyre Size Front                    80 / 100 x 18 - 47 P
Tyre Size Rear                    100 / 90 x 18 - 56 P

Electricals
Battery                 12 V -4 Ah, MF battery
Head Light                 12 V -35 WI 35W - Halogen bulb - Trapeze
Tail Stop Lamp                 12 V -0.5 WI 4.1W (LED lamps - Clear lens)
Turn Signal Lamp                 12 V -21 W (Amber bulb) x 4 nos. (MFR - CI)

Dimensions
Length              2080 mm
Width              765 mm
Height              1145 mm
Wheelbase              1325 mm
Ground Clearance              145 mm
Fuel Tank Capacity              12.1 litre (Min): 1.5 litre (Usable reserve)
Kerb Weight              148 kg (Brakes - FR/ RR --> Disc/ Drum)

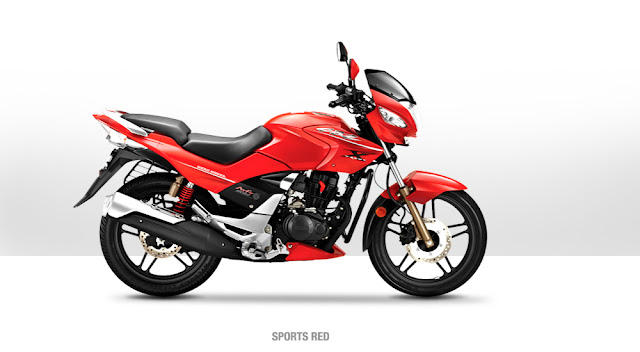

Hero CBZ Xtreme India - Color Availability:








Hero CBZ Xtreme India - Service:


Breakthrough service package with 3 years/40000 kms. warranty period. Plus, 6 Free service benefits up to 560 days.

FREE SERVICE SCHEDULE

1st Free Service:
500 - 750 Kms. or 60 days from the date of purchase, whichever is earlier.

2nd Free Service:
2500 - 2800 Kms. or 100 days from the date of previous service, whichever is earlier.

3rd Free Service:
5000 - 5500 Kms. or 100 days from the date of previous service, whichever is earlier.

4th Free Service:
7000 - 7500 Kms. or 100 days from the date of previous service, whichever is earlier.

5th Free Service:
9000 - 9500 Kms. or 100 days from the date of previous service, whichever is earlier.

6th Free Service:
11000 -11500 Kms. or 100 days from the date of previous service, whichever is earlier.


Hero CBZ Xtreme India - Prices:

CityEx Showroom PriceOn Road Price
New DelhiRs. 63,725Rs. 71,559
ChennaiRs. 64,731Rs. 72,400
BangaloreRs. 64,676Rs. 76,118
MumbaiRs. 64,553Rs. 72,483
KolkataRs. 62,097Rs. 68,440
PuneRs. 64,725Rs. 71,758


Hero CBZ Xtreme India - E-Brochure:

Download Hero CBZ Xtreme India's E-Brochure : Download Now


Hero CBZ Xtreme India - Photogallery:
